Superheat controller with management of PWM electronic expansion valve

Superheat controller with management of PWM electronic expansion valve

DIN rail housing, display, 230 VAC power supply, 3 relays, 1 valve output (triac) 24-240 VAC, 1 analogue output, 5 PT1000 inputs, 1 pressure sensor input, 1 0-10 V input, 1 4-20 mA input, 2 digital inputs, bus interface, clock, plug-in terminal blocks.

Compatible with all major pulse width modulated electronic expansion valves on the market (e.g. Danfoss AKV).

The DC24DE module is a universal controller that performs measurement, monitoring and control functions for the following applications:

– control of cooling units or cold rooms (MT and LT refrigeration) with superheat control using electronic expansion valves,
– compressor control,
– condenser management,
– humidity control,
– management of air conditioning and lighting zones,
– input-output mode.

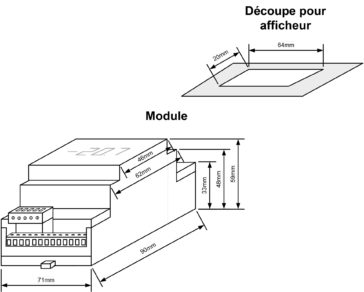

The module is mounted on DIN rails.

The DC24DE module can be programmed using the Teleswin supervision software or directly via the buttons on the front panel. The integrated display shows the values measured by the connected sensors and is used for programming the parameters.

Retour au catalogue


Technical documentation
Management of cooling units yes
Management of compressorsyes (up to 12 compressors with 3 extension modules)
Hygrometry yes
Programmable inputs-outputs yes
Concentration of gazes yes
Air-conditioning - cooling/heatingyes
Management of lighting areas yes
White displayyes
      PT 10005 (also compatible with the probes: NTC 10K/25°C, L.243, KTY81)
      0-10 V yes
      4-20 mAyes
      Triac (24-230 VAC) 1
Power supply230 VAC
Remote monitoring bus interfaceyes
Clock yes
Electronic expansion valve yes
Local bus for extensionsyes
Power supply
            Supply voltage 110-250 VAC, 50-60Hz
            Maximum input power 4 W
Protection rating 1
Contamination rating 2
Overvoltage category II
Conditions of use
            Temperature 0-40°C
            Humidity 0-80% (without condensation)
Breaking capacity of relays outputsinductive load 6 A 250 VAC, resistive load 10 A 250 VAC
Breaking capacity of triacs outputsinductive load 1A 250 VAC, resistive load 1A 250 VAC
Minimal current of triac output 11 mA
Clock – reserve operating margin4 days
Input 0-10 V range of measurement: 0-10 V
Input 4-20 mA range of measurement: 4-20 mA

DC24DE en mode de contrôle de la station de refroidissement

DC24DE en mode gestion hygrométrie

DC24DE en mode entrées-sorties

DC24D en mode régulation d’une chambre froide et surveillance du CO2

DC24DE en mode poste de froid – régulation de plusieurs évaporateurs
