DC24EL-1

Controller for cooling units

Panel-mounting controller for refrigerated cabinets

IP65 enclosure, display, 230 VAC power supply, 4 relays, 5 PT 1000 inputs, 2 digital inputs, bus interface, clock, plug-in terminals.

The DC24EL-1 module is a controller that performs the measuring, monitoring and control functions for refrigerated cabinets or cold rooms (MT and LT refrigeration) with thermostatic expansion valves.

The module can be mounted in the front of a cabinet or integrated in a display case.

The DC24EL-1 module can be programmed using the Teleswin supervision software or directly via the buttons on the front of the unit. The integrated display shows the values measured by the connected sensors and is used for parameter programming.

Retour au catalogue

Description

Technical documentation
Negative temperature cooling unityes
Positive temperature cooling unityes
White display yes
Inputs
      PT 10005 (also compatible with the probes: NTC 10K/25°C, L.243, KTY81)
      0-10 V no
      4-20 mA no
      Digital2
Outputs
      Relays4
      Analogueno
Power supply 230 VAC
Remote monitoring bus interfaceyes
Clock yes
Electronic expansion valve no
Local bus for extensionsno
Power supply
            Supply voltage 110-250 VAC, 50-60Hz
            Maximum input power 3 W
Protection rating 1
Contamination rating 2
Overvoltage category II
Conditions of use
            Temperature 0-40°C
            Humidity 0-80% (without condensation)
Breaking capacity of relays outputsinductive load 3 A 250 VAC, resistive load 8 A 250 VAC
Clock – reserve operating margin4 days

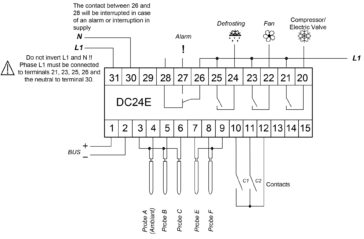

DC24EL-1 for the control of one cooling unit

DC24EL-1 for the control of two cooling units

DC24E for the control of two cooling units

DC24EL-1 for the control of three cooling units

DC24E for the control of three cooling units
